Versatile Fleet,
Ultimate Productivity

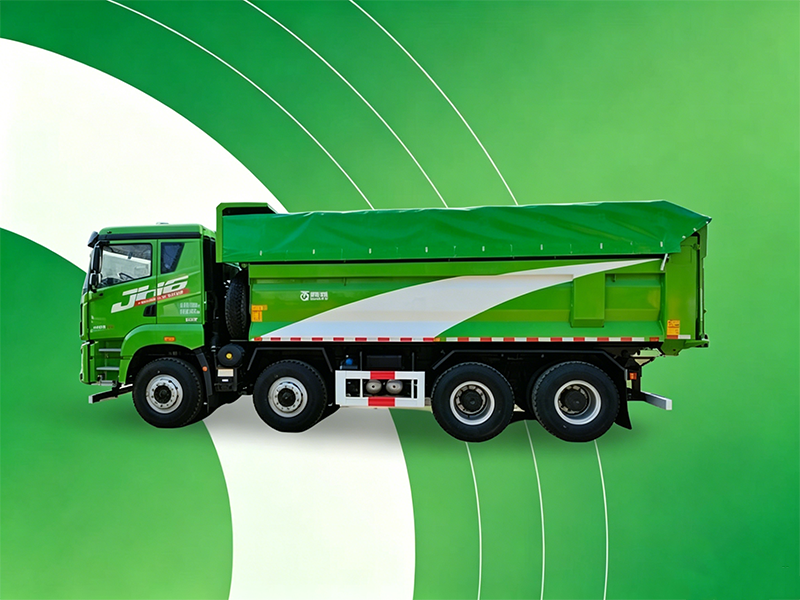

QINGTE Brand Urban Muck Tipper Truck
Lightweight yet high-strength design that allows for a higher payload capacity and faster trips while effectively reducing fuel consumption.
U-shaped floor with single-piece bending ensures smooth unloading without material sticking and prevents the cargo box from bulging under pressure.
Low closed height lowers the center of gravity, providing more stable handling and reducing wind resistance during high-speed driving.
Pneumatic and mechanical dual-limit system safely prevents hydraulic cylinder over-extension, ensuring highly reliable tipping operations.
Excellent sealing performance eliminates spillage, keeping roads clean and fully meeting strict urban environmental protection standards.
Technical Specifications
| Item Category | Detailed Parameters & Content |
| Dimensions | Approx. 9500×2500×3500 mm |
| Gross Weight | 31-ton class |
| Cargo Box Body | High-strength wear-resistant steel plate |
| Lifting Method | Front-tipping / Mid-tipping |
| Rear Door | Automatic locking and sealing |
| Chassis | SINOTRUK / SHACMAN 8×4 |

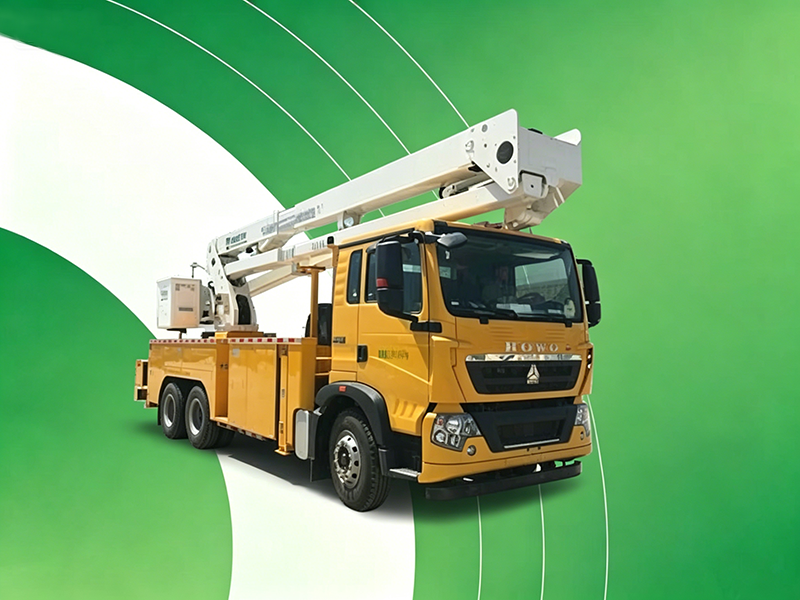

QINGTE Brand Aerial Work Truck
High working height that perfectly satisfies the operational needs for municipal works, power grids, and streetlight maintenance.
360° continuous rotation and folding boom provide outstanding spatial adaptability, allowing flexible operations in tight spaces.
Hydraulic stepless speed regulation ensures incredibly smooth, precise, and safe movements during aerial tasks.
Equipped with an emergency power source, enabling the boom to safely retract even in the event of a sudden power failure.
Heavy-duty chassis with strong load capacity guarantees high operational stability and prevents the vehicle from tipping over.
Technical Specifications
| Item Category | Detailed Parameters & Content |
| Model | QDT5197JGKS6 |
| Dimensions | 10465×2496×3920 mm |
| Gross Weight | 19425 kg |
| Working Height | 20 m class |
| Working Range | ≥8–10 m |
| Platform Capacity | 200 kg |
| Chassis | SINOTRUK 6×4 |

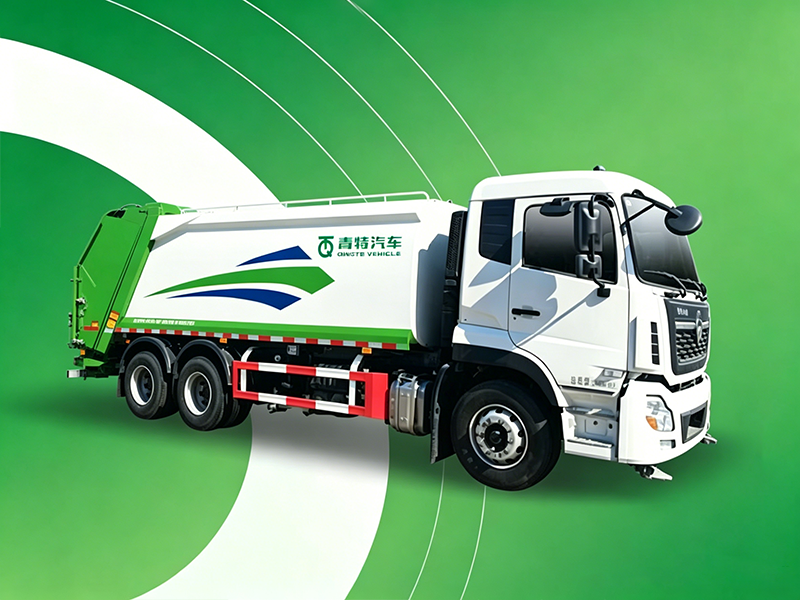

QINGTE Brand Compactor Garbage Truck
Large 20m³ capacity delivers exceptional load volume and high waste collection and transportation efficiency.
Key components made of T700 high-strength steel and NM450 wear-resistant steel plates ensure excellent durability and heavy-duty performance.
Bi-directional compression and powerful hydraulics achieve high compaction density and prevent any leakage.
CAN bus electronic control system guarantees a low failure rate and simple, hassle-free maintenance.
Fully sealed design with a large sewage tank completely eliminates spillage and prevents secondary environmental pollution.
Technical Specifications
| Item Category | Detailed Parameters & Content |
| Overall Dimensions | 10050×2500×3450 mm |
| Gross Weight | 25-ton class |
| Waste Hopper Volume | 20 m³ |
| Packer Volume | 1200 L |
| Sewage Tank | ≥450 L |
| Compression Density | 600–800 kg/m³ |
| Chassis | SINOTRUK / DONGFENG 6×4 chassis |

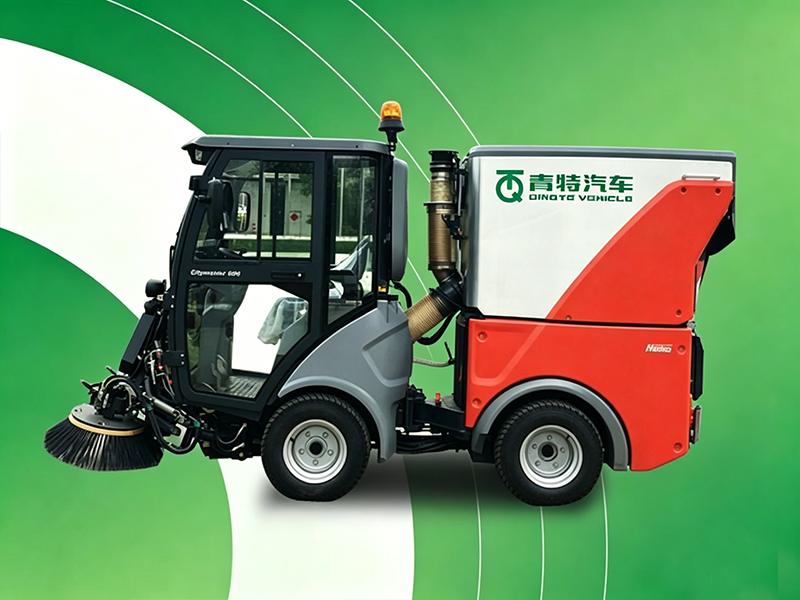

QINGTE Brand Road Sweeper Truck
Compact and flexible design makes it easy to navigate through residential communities and narrow backstreets/alleys.
Sweeping brushes automatically avoid obstacles upon impact, effectively preventing damage and extending service life.
Full-suction system combined with spray dust suppression minimizes airborne dust, making it highly eco-friendly.
Imported hydraulic valves and premium blowers deliver strong suction, low noise levels, and a long operational lifespan.
Centralized electronic controls provide simple and user-friendly operation, making it easy for operators to master quickly.
Technical Specifications
| Item Category | Detailed Parameters & Content |
| Dimensions | 5740×2150×2530 mm |
| Curb Weight | 5240 kg |
| Rated Payload | 1990 kg |
| Waste Hopper | 5 m³ |
| Water Tank | 1000 L |
| Sweeping Width | ≥2.7 m |
| Sweeping Capacity | ≥5400 m²/h |
| Auxiliary Engine | JMC 64 kW |

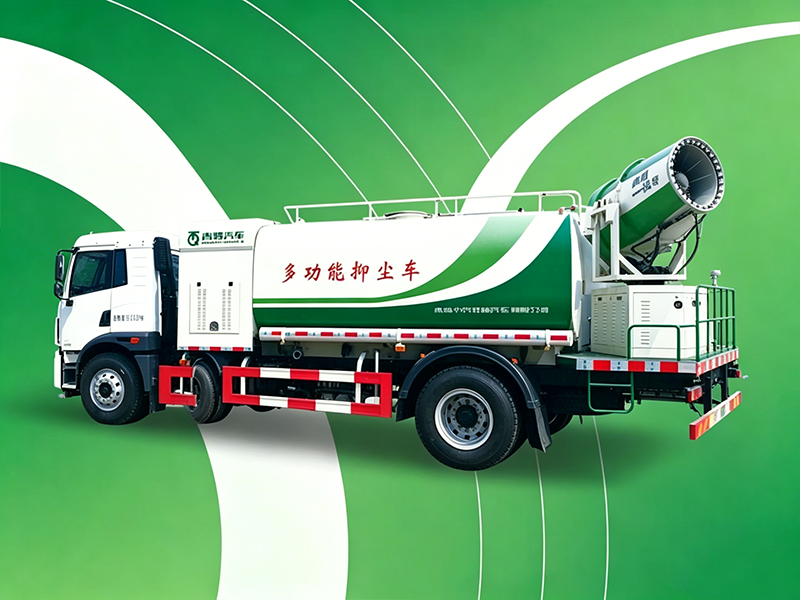

QINGTE Brand Multi-Functional Dust Suppression Truck
Long spray range and wide area coverage ensure highly effective dust suppression and air purification across demanding environments like construction sites, mining areas, and public roads.
Aesthetically pleasing rectangular-oval tank design optimizes fluid dynamics during transit, providing a lower and more stable center of gravity for safer driving.
Smart electronic controls integrated into the cab enable convenient, one-touch operation, allowing the driver to manage all functions safely without stepping out of the vehicle.
Intelligent low water level alarm system automatically alerts the operator to prevent the water pump from dry running, significantly extending the lifespan of the equipment.
Highly versatile, multi-functional capability supports high-pressure sprinkling, roadway flushing, and fine mist spraying, making it a true all-in-one vehicle for various sanitation needs.
Technical Specifications
| Item Category | Detailed Parameters & Content |
| Dimensions: | Approx. 10000×2500×3300 mm |
| Water Tank Volume: | 12–15 m³ |
| Spray Range: | ≥35–45 m |
| Pitch Angle: | -10°～+60° |
| hassis: | SINOTRUK / DONGFENG 6×4 |
| Water Pump: | High-pressure self-priming |
| Sweeping Capacity: | ≥5400 m²/h |
| Auxiliary Engine: | JMC 64 kW |

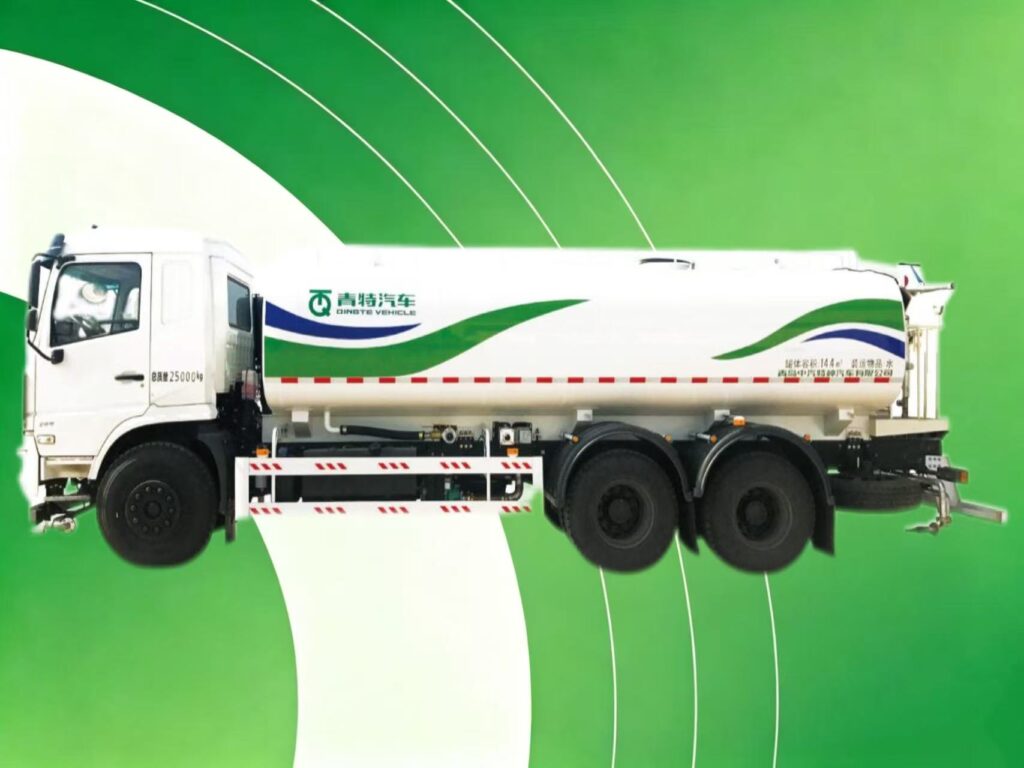

QINGTE Brand Water Tanker Truck
Large tank capacity and long operational range make it perfectly suited for continuous work on urban main roads.
Multiple nozzles and a high-pressure water monitor allow for versatile operations, including sprinkling, greening irrigation, and emergency firefighting.
Self-priming water pump enables flexible water refilling directly from natural, outdoor sources like rivers or ponds.
Intelligent low water level alarm protects the system by preventing dry running, ensuring safe and reliable operation.
Anti-corrosion interior lining effectively protects the tank from rust and wear, significantly extending its operational lifespan.
Technical Specifications
| Item Category | Detailed Parameters & Content |
| Dimensions | Approx. 9800×2500×3200 mm |
| Water Tank Volume | 12–15 m³ |
| Front Flushing / Rear Sprinkling / Side Spraying / Water Monitor |
| Flow Rate | ≥60 m³/h |
| Range | ≥28 m |
| Chassis | 6×4 SINOTRUK / DONGFENG |
