Smart Compaction
Cleaner Cities

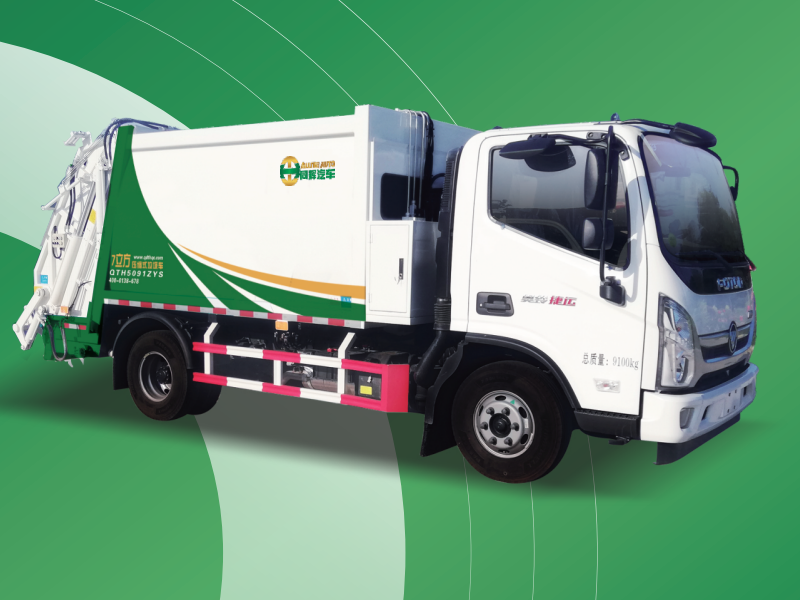

7m³ Fuel-powered Compactor Garbage Truck
Performance Feature
Powerful Chassis: Specialized sanitation chassis with high performance and reliability.
High Capacity: Bidirectional compression achieves density over 800 kg/m³.
Durable Quality: Top-tier components and high-strength, anti-corrosive steel.
Tight Sealing: Fully sealed design with dual-way hydraulic locks to prevent leakage.
Flexible Loading: Customizable loading mechanisms with automatic, aesthetic rear door.
Enhanced Safety: Emergency stop and multiple hydraulic safeguards for secure operation.
Technical Specifications
| Item | Unit | QTH5075ZYS | QTH5091ZYS |
| Overall Dimensions (L x W x H) | mm | 6470 x 2230 x 2590 | 6674 x 2230 x 2650 |
| Chassis Model | – | EQ1075SJ3CDF | BJ1098VEJEA-AB2 |
| Engine Model | – | Q28-130E60 | Q28-152E60 |
| Engine Power | kW | 96 | 112 |
| Cab Configuration | – | Air Conditioning | Air Conditioning |
| Maximum Speed | km/h | 110 | 110 |
| Body Volume | m³ | 7 | 7 |
| Hopper Volume | m³ | 1.2 | 1.2 |
| Wheelbase | mm | 3308 | 3360 |
| Gross Vehicle Weight | kg | 7360 | 9100 |

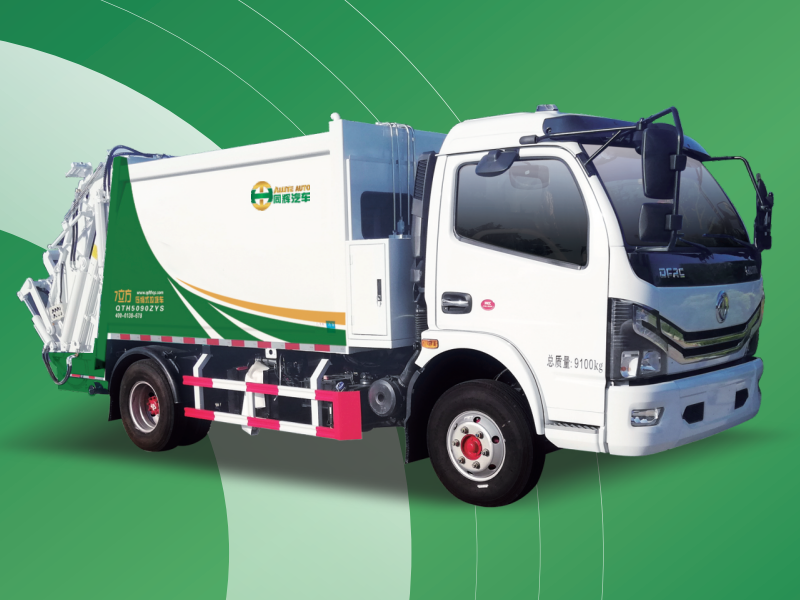

7m³ Fuel-powered Compactor Garbage Truck
Performance Feature
Powerful Chassis: Specialized sanitation chassis offering high performance, stability, comfort, and payload.
High Efficiency: Bidirectional compression technology achieves a waste density of over 600–800 kg/m³.
Durable Quality: Top-tier components, high-strength anti-corrosive steel, and lightweight structural design.
Leak-proof Sealing: Dual-way hydraulic locks and an oversized sewage tank prevent secondary pollution.
Flexible Loading: Customizable loading options with fully sealed hoppers and smooth pneumatic door operation.
Enhanced Safety: Emergency stop, dual-control operation, and multiple hydraulic safety locks ensure secure maintenance and operation.
Technical Specifications
| Item | Unit | QTH5090ZYS | QTH5084ZYS |
| Overall Dimensions (L x W x H) | mm | 6560 x 2280 x 2600 | 6590 x 2175 x 2620 |
| Chassis Model | – | EQ1095SJ8CD2 | HFC1081P31K1C7ZS |
| Engine Model | – | Q28-156E60 | D30TCIF2 |
| Engine Power | kW | 115 | 120 |
| Cab Configuration | – | Air Conditioning | Air Conditioning |
| Maximum Speed | km/h | 103 | 100 |
| Body Volume | m³ | 7 | 7 |
| Hopper Volume | m³ | 1.2 | 1.2 |
| Wheelbase | mm | 3308 | 3365 |
| Gross Vehicle Weight | kg | 9100 | 8280 |

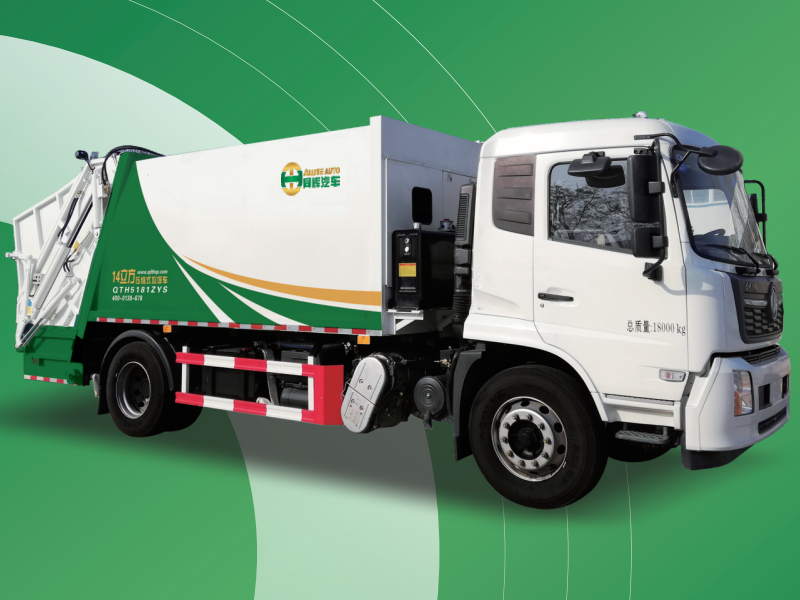

14m³ Fuel-powered Compactor Garbage Truck
Performance Feature
Powerful Chassis: Specialized sanitation chassis offering high performance, stability, comfort, and payload.
High Efficiency: Bidirectional compression technology achieves a waste density of over 600–800 kg/m³.
Durable Quality: Top-tier components, high-strength anti-corrosive steel, and lightweight structural design.
Leak-proof Sealing: Dual-way hydraulic locks and an oversized sewage tank prevent secondary pollution.
Flexible Loading: Customizable loading options with fully sealed hoppers and smooth pneumatic door operation.
Enhanced Safety: Emergency stop, dual-control operation, and multiple hydraulic safety locks ensure secure maintenance and operation.
Technical Specifications
| Item | Unit | QTH5181ZYS | QTH5182ZYS |
| Overall Dimensions (L x W x H) | mm | 8790 x 2530 x 3200 | 8630 x 2520 x 3250 |
| Chassis Model | – | DFH1180EX8 | EQ1185LJ9CDE |
| Engine Model | – | B6.2NS6B230 | B6.2NS6B230 |
| Engine Power | kW | 169 | 169 |
| Cab Configuration | – | Air Conditioning | Air Conditioning |
| Maximum Speed | km/h | 89 | 105 |
| Body Volume | m³ | 14 | 14 |
| Hopper Volume | m³ | 1.8 | 1.8 |
| Wheelbase | mm | 4500 | 4500 |
| Gross Vehicle Weight | kg | 18000 | 18000 |

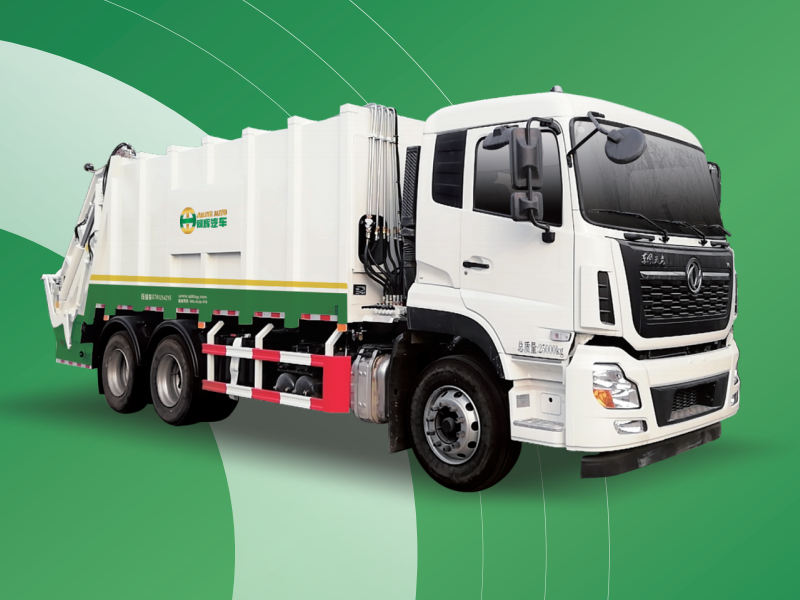

12m³/24m³ Fuel-powered Compactor Garbage Truck
Performance Feature
Powerful Chassis: Specialized sanitation chassis offering high performance, stability, comfort, and large payload.
High Efficiency: Bidirectional compression technology achieves a waste density of over 600–800 kg/m³.
Durable Quality: Top-tier components, high-strength anti-corrosive steel, and lightweight structural design.
Leak-proof Sealing: Dual-way hydraulic locks and an oversized sewage tank prevent secondary pollution.
Flexible Loading: Customizable loading options with fully sealed hoppers and smooth pneumatic door operation.
Enhanced Safety: Emergency stop, dual-control operation, and multiple hydraulic safety locks ensure secure maintenance and operation.
Technical Specifications
| Item | Unit | QTH5168ZYSA | QTH5254ZYS |
| Overall Dimensions (L x W x H) | mm | 7777 x 2540 x 3280 | 10125 x 2540 x 3385 |
| Chassis Model | – | EQ1165LJ9CDE | DFH1250D4 |
| Engine Model | – | D4.0NS6B195 | DDI75E300-60 |
| Engine Power | kW | 143 | 220 |
| Cab Configuration | – | Air Conditioning | Air Conditioning |
| Maximum Speed | km/h | 89 | 89 |
| Body Volume | m³ | 12 | 20 |
| Hopper Volume | m³ | 1.8 | 1.8 |
| Wheelbase | mm | 3950 | 4350 + 1350 |
| Gross Vehicle Weight | kg | 16200 | 25000 |

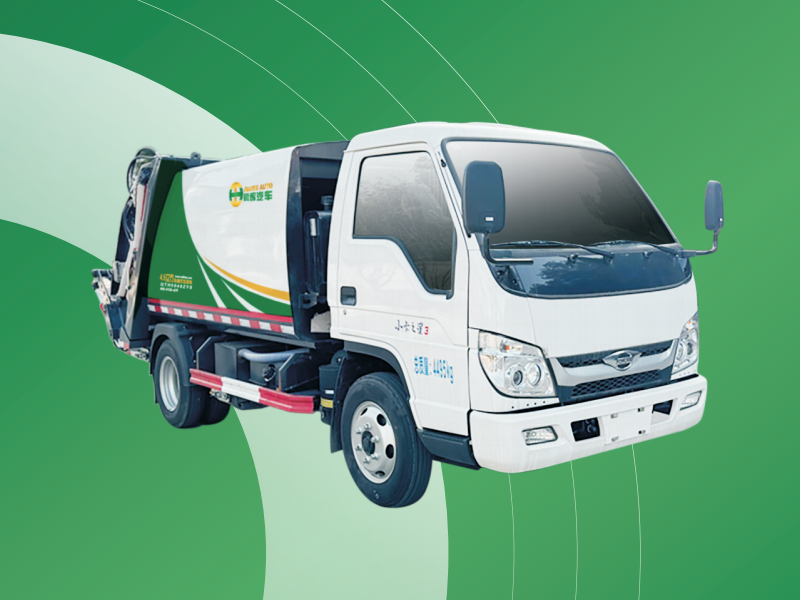

4.5m³ Fuel-powered Compactor Garbage Truck
Performance Feature
Economic & Eco-friendly: “Blue-plate” compliant, C-license compatible, low operating costs, high efficiency; fully sealed to prevent leakage and odors.
Efficient & Intelligent: Bidirectional compression, cycle time <10s; features CAN bus + dedicated controller for high automation and durability.
Robust & Safe: Made of high-strength wear-resistant steel for superior rigidity; dual-way balance valves and E-stop buttons ensure safety.
Premium Components: All critical components are sourced from top imported brands to maximize operational reliability.
Precision Plumbing: Utilizes EATON (US) hydraulic tubing technology for aesthetic layout, easy maintenance, and leakage resistance.
User-friendly: Multi-point control box installation; integral casting for stress parts; lightweight stamped outer panels.
Technical Specifications
| Item | Unit | QTH5040ZYS |
| Overall Dimensions (L x W x H) | mm | 5985 x 2050 x 2230 |
| Chassis Model | – | BJ1045V9JB5-54 |
| Engine Model | – | Q25A-150C60 |
| Engine Power | kW | 110 |
| Cab Configuration | – | Air Conditioning |
| Maximum Speed | km/h | 105 |
| Body Volume | m³ | 4.5 |
| Hopper Volume | m³ | 0.3 |
| Wheelbase | mm | 2850 |
| Gross Vehicle Weight | kg | 4495 |

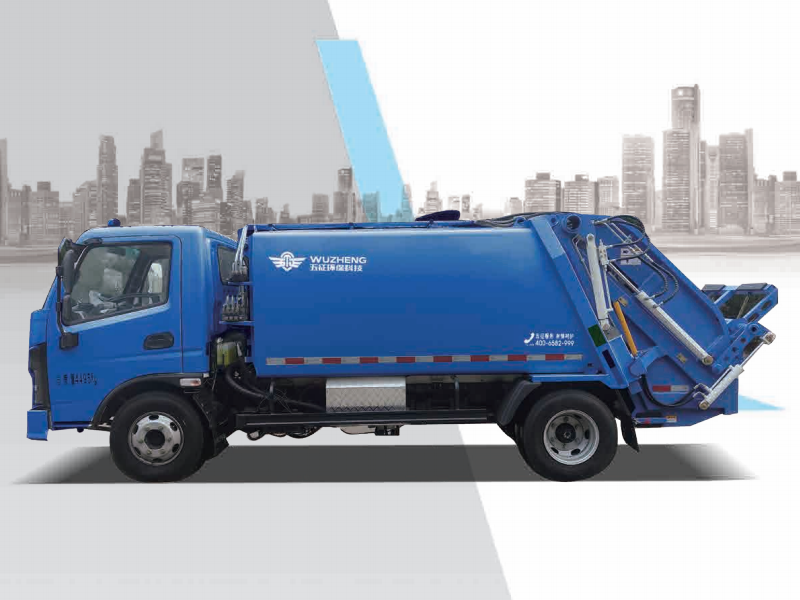

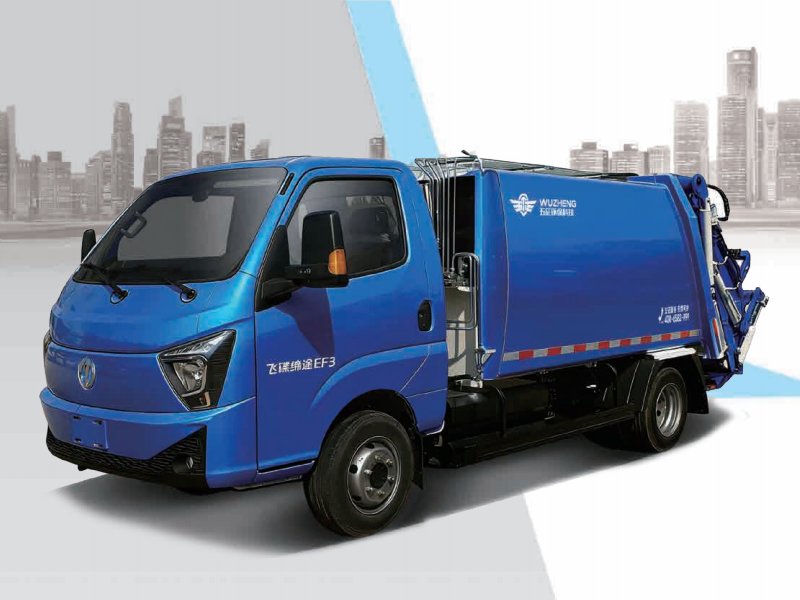

6m³ Pure Electric Compactor Garbage Truck
Performance Feature
Pure Electric & Eco-friendly: Green-plate compliant, energy-efficient. Integrated design ensures legal weight; C-license compatible with low operating costs.
Powerful Performance: Collects up to 160 bins on a full charge; range ≥100km. Fast charging from 20% to 100% in under 1 hour.
Compact & Versatile: Large 6m³ volume; 2170mm height for easy basement access. 20% gradeability at full load; 360° blind-spot-free rearview system.
Premium Durability: Curved body made of weather-resistant and anti-wear steel. Electrophoresis and baked finish with paint thickness >100μm.
Efficient Control: Equipped with wireless remote for flexible operation. U-shaped natural rubber seals provide superior leakage protection.
Technical Specifications
| Announcement No. | Unit | WZK5041ZYSD66BEV |
| Body Volume | m³ | 6 |
| Gross Vehicle Weight | kg | 4495 |
| Overall Dimensions | mm | 5995 × 2020 × 2170 |
| Battery Type / Brand / Capacity | kWh | LFP / CATL / 63.75 |
| CLTC Range | km | ≥100 |
| Wheelbase | mm | 3100 |
| Fastest Charging Time | h | ≤1.5 |
6m³ Pure Electric Compactor Garbage Truck
Performance Feature
High Efficiency：Integrated vehicle design, compliant weight for worry-free registration; requires a Class C license; low operating costs.
Range & Charging：Range is no less than 100km; standard fast charging, 20% to 100% charge time < 1h.
Volume & Passability：Effective volume of 6m³ with larger capacity; height of 2190mm allows free entry/exit from underground complexes.
Quality & Durability：Container uses weather and wear-resistant steel plates; corrosion-resistant; paint film thickness > 100μm.
Smart Operation：Equipped with wireless remote control for flexible operation; standard rearview camera for blind-spot-free reversing.
Technical Specifications
| Announcement No. | Unit | WZK5043ZYSW63BEV |
| Container Volume | m³ | 6 |
| Total Mass | kg | 4495 |
| Dimensions | mm | 5995 × 2070 × 2190 |
Battery Type / Brand / Capacity | kWh | Lithium Iron Phosphate / CALB / 81.87 |
| Operational Range | km | 200 waste bins + 100km |
| Wheelbase | mm | 3360 |
| Fastest Charging Time | h | ≤1 |

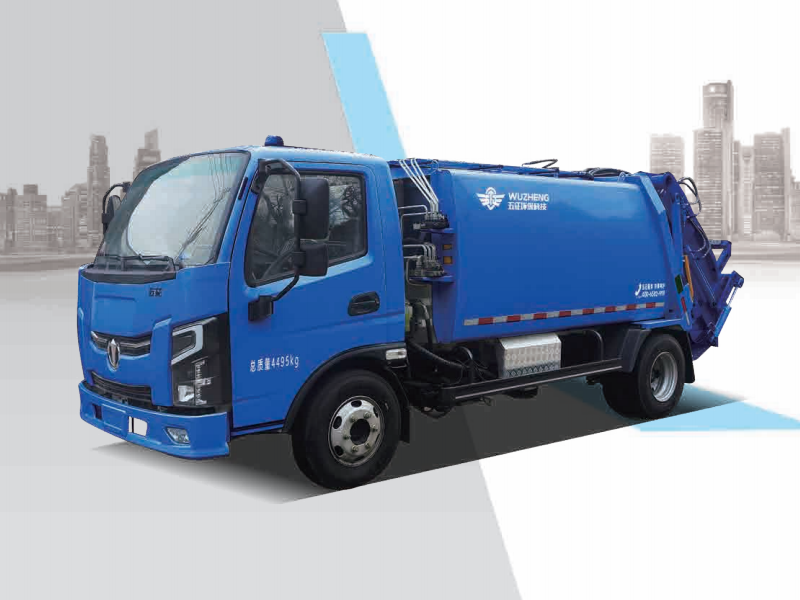

7m³ Pure Electric Compactor Garbage Truck
Electric Range & Energy Efficiency：Fully charged, it can collect 2 truckloads (240 bins) of garbage, with a driving range of no less than 80km.
Efficient Fast Charging：Equipped with standard fast charging, charging from 20% to 100% takes less than 1 hour.
Body Material & Durability：Features a curved body structure made of weathering and wear-resistant steel plates, ensuring high resistance to corrosion and wear.
Smart Control & Safety：Equipped with a wireless remote control for flexible and convenient operation; standard rearview camera ensures zero blind spots when reversing.
Passability & Vehicle Height：With a height of 2190mm, it can freely enter and exit underground complexes.
Gradeability & Braking：Features a 20% gradeability at full load and standard air-cut brakes, ensuring worry-free hill starts.
Technical Specifications
| Announcement Model | Unit | WZK5090ZYSW17BEV |
Container Capacity | m³ | 7 |
Gross Vehicle Weight (GVW) | kg | 9100 |
Overall Dimensions | mm | 6770 × 2070 × 2190 |
Battery Type / Brand / Capacity | kWh | LFP (Lithium Iron Phosphate) / CALB / 81.87 |
Operating Range | km | 240 garbage bins + 80km |
Wheelbase | mm | 3360 |
Fastest Charging Time | h | ≤1 |

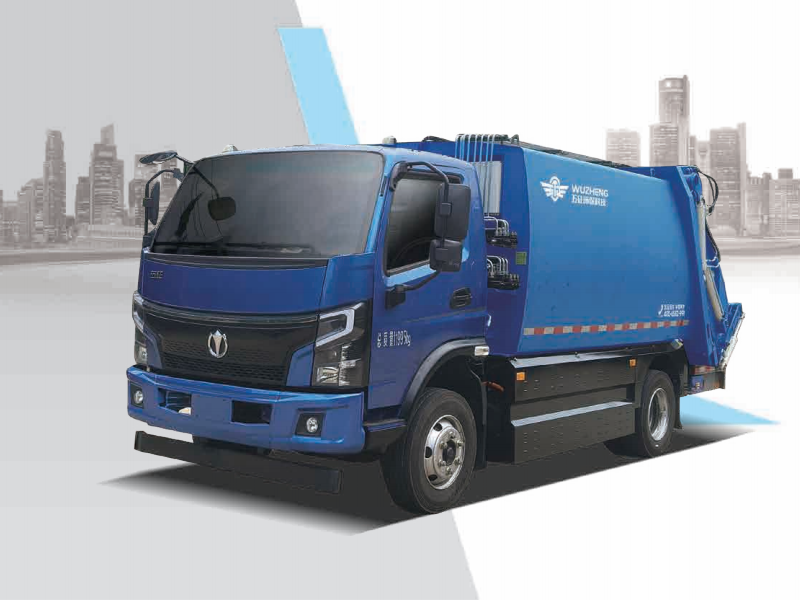

7m³ /10m³ Pure Electric Compactor Garbage Truck
Electric Range & Fast Charging：Equipped with a FinDreams 131.98 kWh battery, it delivers a driving range of over 160km while carrying 3 truckloads (400 bins) of garbage; fast charging takes just 1.5 hours, making it highly efficient and convenient.
Lightweight & Body Durability：The upper structure features a lightweight design to reduce overall weight and lower operational costs; the body is constructed from weathering and wear-resistant steel plates, ensuring excellent resistance to corrosion and wear.
Full Sealing & Leak Prevention：A comprehensive perimeter seal with custom-designed sealing strips is utilized between the waste tank and the hopper for superior sealing performance; a wastewater diversion and collection system is integrated at the bottom seal of the hopper to completely eliminate leaks.
Advanced Coating Process：Upper components undergo electrophoretic treatment, finished with baked paint and a clear topcoat, achieving a paint film thickness of over 100μm.
Technical Specifications
| Announcement Model | Unit | WZK5120ZYSW63BEV |
| Container Capacity | m³ | 7/10 |
| Gross Vehicle Weight | kg | 11995 |
| Overall Dimensions | mm | 6960 × 2210 × 2620 / 6960 × 2320× 2650, 2700 |
| Battery Type/Brand/Capacity | kWh | LFP/FinDreams/131.98 |
| Operating Range | km | 400 garbage bins+160km |
| Wheelbase | mm | 3360 |
| Fastest Charging Time | h | ≤1.5 |

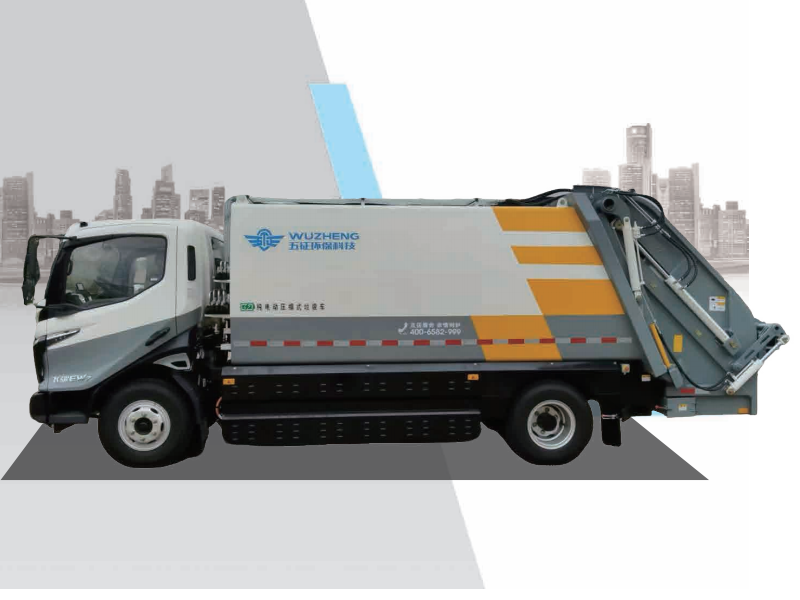

10m³ Pure Electric Compactor Garbage Truck
Loading Capacity & Smart Control：Effective volume of 10m³, offering a larger capacity within the same wheelbase; wireless remote control for convenient operation.
Electric Range & Fast Charging：Fully charged, it can collect 600 bins of garbage with a driving range of >180km, meeting the needs of 3 collection cycles; fast charging takes less than 1.5 hours from 20% to 100%.
High-Strength Structure & Material：The body is constructed from weathering and wear-resistant steel plates, ensuring resistance to corrosion and wear; features a curved body structure and high-strength steel frame to resist compression.
Advanced Coating Process：Upper components undergo electrophoretic treatment, finished with baked paint and a clear topcoat, achieving a paint film thickness of over 100μm.
Self-Developed Control & Reliability：Self-developed specialized vehicle control software, proven by 25,000km reliability tests; top-tier brands selected for battery and motor with independent integrated design.
Technical Specifications
| Name | Unit | Pure Electric Compactor Garbage Truck |
| Container Capacity | m³ | 10 |
| Gross Vehicle Weight | kg | 11995/12495 |
| Overall Dimensions | mm | 6940 × 2320 × 2700 |
| Battery Type/Brand/Capacity | kWh | LFP/CATL/164.86 |
| Operating Range | km | 600 garbage bins+180km |
| Fastest Charging Time | h | ≤1.5 |
| Wheelbase | mm | 3360 |

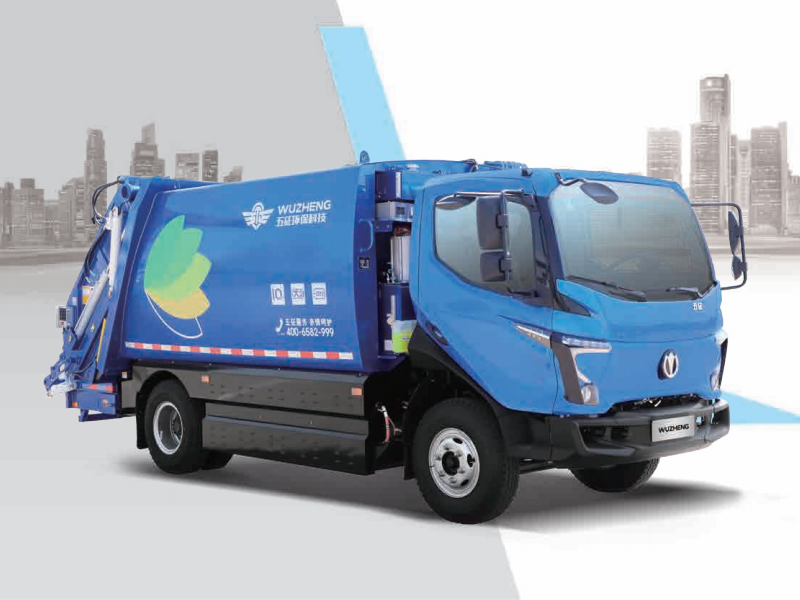

10m³ Pure Electric Compactor Garbage Truck
Pure Electric Chassis & Low Energy Consumption：Integrated vehicle chassis design, lighter curb weight compared to competitors, and low operational energy consumption.
Loading Capacity & High Payload：Effective volume of 12m³, providing a larger single loading capacity.
Vehicle Dimensions & Flexibility：Short overall vehicle length, offering superior passability and more flexible operation.
Body Material & High Durability：The body is constructed from weathering and wear-resistant steel plates, ensuring high resistance to corrosion and wear.
Advanced Coating & Full Sealing：Features separate component electrophoresis, baked paint finish with a clear topcoat, achieving a film thickness of >100μm; the body and hopper utilize U-shaped silicone strips for a higher-performance seal.
Technical Specifications
| Announcement Model | Unit | WZK5125ZYSW78BEV |
| Container Capacity | m³ | 12 |
| Gross Vehicle Weight | kg | 12495 |
| Overall Dimensions | mm | 7485 × 2320 × 2700 |
| Battery Type/Brand/Capacity | kWh | LFP/CATL/164.86 |
| Operating Range | km | 700 garbage bins+160km, remaining 20% power |
| Wheelbase | mm | 3800 |
| Hopper Capacity | m³ | 0.8 |
| Waste Water Tank Capacity | L | 400 |
