Dump-Style
Waste Solutions

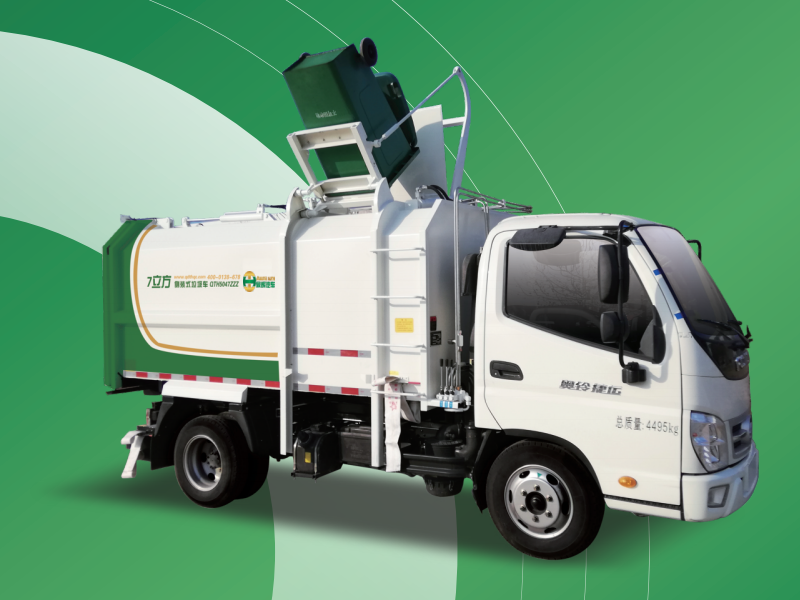

7m³ Fuel-Powered Self-Loading Garbage Truck
Specialized Chassis & Powerful Performance：Specialized sanitation chassis with a powerful engine, ensuring stable mobility, comfortable driving, safety, and high payload capacity.
Large Capacity & High Efficiency：Side-loading body features a frame and curved design, providing a robust structure and large loading capacity.
Reliable Quality & Durability：Core hydraulic and electrical parts are from top brands; key structures are optimized to reduce weight, offering high strength and corrosion resistance.
Reliable Sealing & Leak Prevention：Silicone seals between the body and rear door offer corrosion resistance; a bottom wastewater tank collects sewage to prevent secondary pollution.
Loading & Unloading Methods：Smooth side-lifting for convenient loading; dual hydraulic cylinders tilt the body up to 45° backward for clean and complete unloading.
Technical Specifications
| Item | Unit | QTH5045ZZZ | QTH5047ZZZ |
| Overall Dimensions (LxWxH) | mm | 5215x2130x2460 | 5145x2080x2520 |
| Chassis Model | BJ1045V9JB5-54 | BJ1041VAJB4-AA1 | |
| Engine Model | Q23-115E60 | Q23-115E60 | |
| Engine Power | kw | 85 | 85 |
| Cab Configuration | Air Conditioning | Air Conditioning | |
| Top Speed | km/h | 105 | 110 |
| Compartment Volume | m³ | 7 | 7 |
| Wheelbase | mm | 2850 | 2800 |
| Max Gross Weight | kg | 4495 | 4495 |

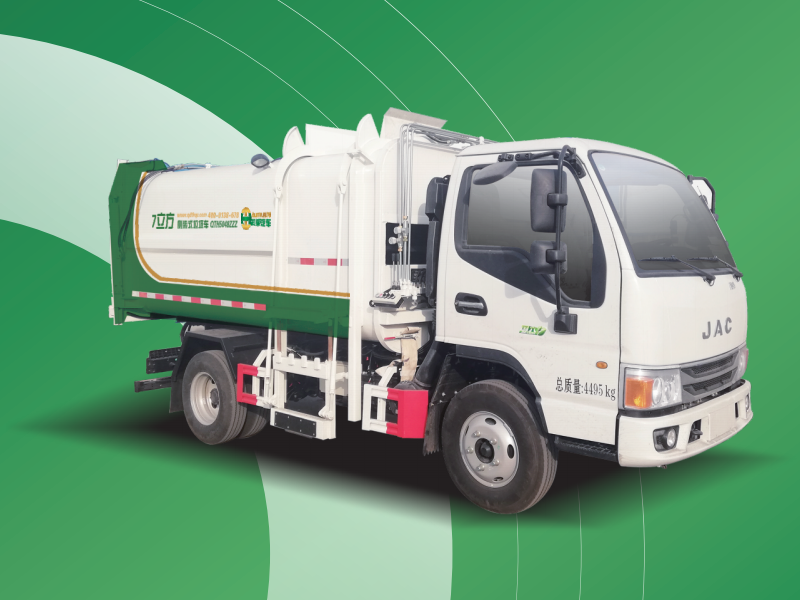

7m³/10m³ 10Fuel-Powered Self-Loading Garbage Truck
Specialized Chassis & Powerful Performance：Specialized sanitation chassis with a powerful engine, ensuring stable mobility, comfortable driving, safety, and high payload capacity.
Large Capacity & High Efficiency：Combines side-loading and mobile station principles with a high compaction ratio and up to 9-ton force; frame and curved body ensure a robust structure and large payload.
Reliable Quality & Durability：Core hydraulic and electrical parts are from top brands; key structures are optimized to reduce weight, offering high strength and corrosion resistance.
Reliable Sealing & Leak Prevention：Silicone seals between the body and rear door offer corrosion resistance; a bottom wastewater tank collects sewage to prevent secondary pollution.
Loading & Unloading Methods：Smooth side-lifting for convenient loading; dual hydraulic cylinders tilt the body up to 45° backward for clean and complete unloading.
Technical Specifications
| Item | Unit | QTH5048ZZZ | QTH5071ZZZB |
Overall Dimensions (LxWxH) | mm | 5585x2160x2480 | 6200x2270x2580 |
Chassis Model | HFC1041P23K1C7ZS | EQ1075SJ3CDF | |
Engine Model | Q23-115E60 | Q23-136E60 | |
Engine Power | kw | 85 | 100 |
Cab Configuration | Air Conditioning | Air Conditioning | |
Top Speed | km/h | 100 | 110 |
Compartment Volume | m³ | 7 | 10 |
Wheelbase | mm | 2850 | 3308 |
Max Gross Weight | kg | 4495 | 7360 |

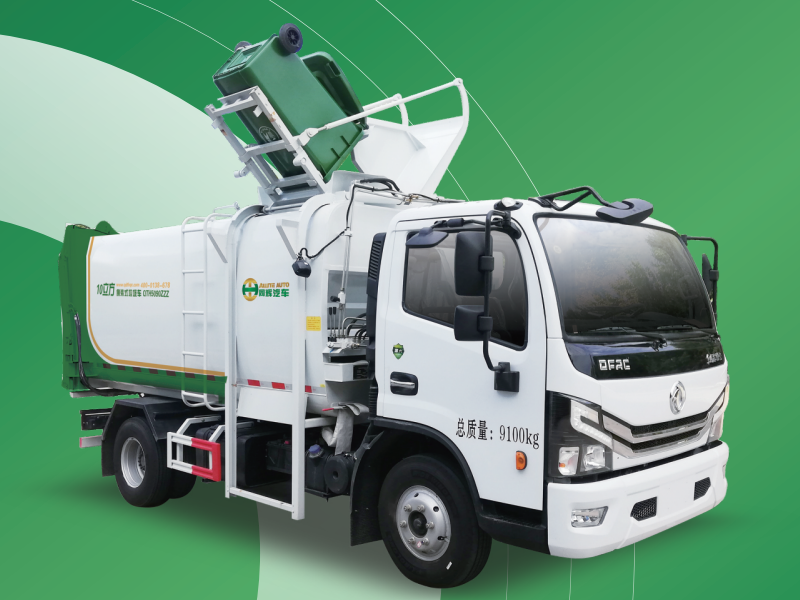

10m³ Fuel-Powered Self-Loading Garbage Truck
Specialized Chassis & Powerful Performance：Specialized sanitation chassis with a powerful engine, ensuring stable mobility, comfortable driving, safety, and high payload capacity.
Large Capacity & High Efficiency：Combines side-loading and mobile station principles with a high compaction ratio and up to 9-ton force; frame and curved body ensure a robust structure and large payload.
Reliable Quality & Durability：Core hydraulic and electrical parts are from top brands; key structures are optimized to reduce weight, offering high strength and corrosion resistance.
Reliable Sealing & Leak Prevention：Silicone seals between the body and rear door offer corrosion resistance; a bottom wastewater tank collects sewage to prevent secondary pollution.
Loading & Unloading Methods：Smooth side-lifting for convenient loading; dual hydraulic cylinders tilt the body up to 45° backward for clean and complete unloading.
Technical Specifications
| Item | Unit | QTH5090ZZZ |
Overall Dimensions (LxWxH) | mm | 5995x2500x2710 |
Chassis Model | EQ1095SJ8CD2 | |
Engine Model | Q28-156E60 | |
Engine Power | kw | 115 |
Cab Configuration | Air Conditioning | |
Top Speed | km/h | 103 |
Compartment Volume | m³ | 10 |
Wheelbase | mm | 3308 |
Max Gross Weight | kg | 9100 |

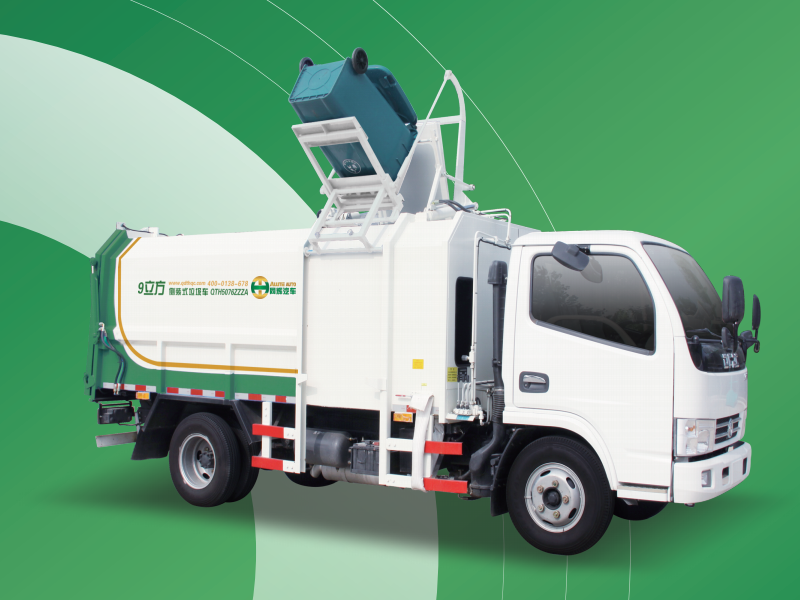

9m³ Fuel-Powered Self-Loading Garbage Truck
Specialized Chassis & Powerful Performance：Specialized sanitation chassis with a powerful engine, ensuring stable mobility, comfortable driving, safety, and high payload capacity.
Large Capacity & High Efficiency：Combines rear-loading compaction principles with an ejector panel for efficient volume reduction and higher payload; frame and curved body ensure a robust structure.
Reliable Quality & Durability：Core hydraulic and electrical parts are from top brands; key structures are optimized to reduce weight, offering high strength and corrosion resistance.
Reliable Sealing & Leak Prevention：Silicone seals between the body and rear door offer corrosion resistance; a bottom wastewater tank collects sewage to prevent secondary pollution.
Loading & Unloading Methods：Smooth side-lifting for convenient loading; built-in internal ejector panel ensures smooth, clean, and complete unloading.
Technical Specifications
| Item | Unit | QTH5076ZZZA | QTH5079ZZZA |
Overall Dimensions (LxWxH) | mm | 5980x2160x2600 | 6090x2195x2430 |
Chassis Model | EQ1075SJ3CDF | BJ1076VEJDA-51 | |
Engine Model | Q28-136E60 | Q28-130C60 | |
Engine Power | kw | 96 | 96 |
Cab Configuration | Air Conditioning | Air Conditioning | |
Top Speed | km/h | 110 | 95 |
Compartment Volume | m³ | 9 | 9 |
Wheelbase | mm | 3308 | 3360 |
Max Gross Weight | kg | 7360 | 7360 |

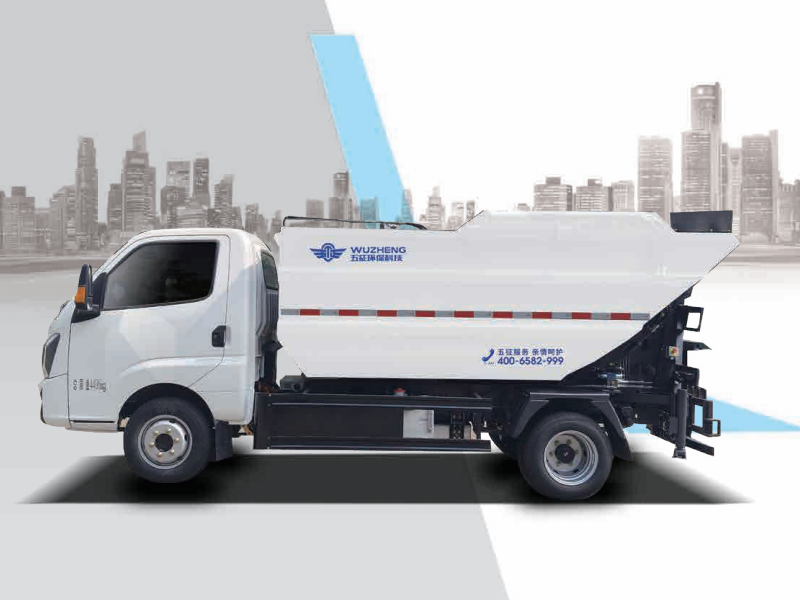

5m³ Electric High-Tip Rear Loading Garbage Truck
High Loading Capacity：The garbage container capacity reaches 5m³, featuring scraper and slider compaction technology for a large single loading capacity.
Long Operating Range：Capable of collecting 55 bins of 240L domestic waste on a single charge, with an operating range of up to 100km.
Reliable Sealing & Leak Prevention：The boat-shaped body design ensures 100% leak-proof performance, completely solving dripping and leakage issues during collection and transportation.
Eco-Friendly & High Durability：The entire waste container is welded from high-strength weathering steel plates, featuring large curved side panels, an attractive appearance, and high structural rigidity.
Reliable & Efficient Operation：The vehicle integrates mechanical, electrical, and hydraulic systems, equipped with self-locking and interlocking commands to ensure safe, efficient operation and prevent misoperation.
Technical Specifications
| Notice No. | Unit | WZK5041ZZZD66BEV-1 |
| Container Capacity | m³ | 5 |
| Gross Vehicle Weight | kg | 4495 |
| Overall Dimensions | mm | 5580 × 2060 × 2280 |
| Battery Type/Brand/Capacity | kWh | LFP/CATL/63.75 |
| Operating Range | km | ≥ 100 |
| Wheelbase | mm | 3100 |
| Lifting Cycle Time | s | 22 |

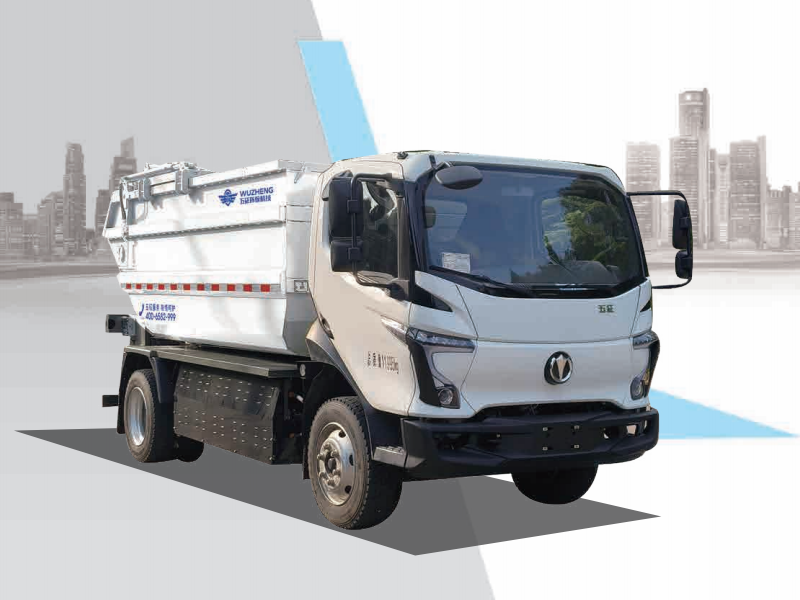

8m³ Electric High-Tip Rear Loading Garbage Truck
High Loading Capacity：The vehicle features an 8m³ body volume with a lightweight design, reducing overall vehicle weight and lowering operating costs.
Ultra-Long Operating Range：Green-plate pure electric vehicle equipped with a 164.86kWh CATL battery, delivering an operational range of over 160km; fast charging takes less than 1.5 hours, making it quick and convenient.
Reliable Sealing & Leak Prevention：The entire waste container is welded with weathering steel plates, offering high strength and corrosion resistance; the boat-shaped structure requires no rubber seals, fundamentally eliminating leakage issues.
Eco-Friendly & Smart Operation：The bin-lifting mechanism docks seamlessly with standard 240L/660L waste bins; the three-step sequence of locking, lifting, and tilting is smooth and continuous, effectively reducing waste spillage during the process.
Reliable & Efficient Performance：Premium major brands like CATL are preferred, ensuring high quality and exceptional reliability of the core electric systems
Technical Specifications
| Notice No. | Unit | WZK5121ZZZW78BEV |
| Container Capacity | m³ | 8 |
| Gross Vehicle Weight | kg | 11995 |
| Overall Dimensions | mm | 5930 × 2220 × 2700 |
| Battery Type/Brand/Capacity | kWh | LFP/CATL/164.86 |
| Wheelbase | mm | 3360 |
| Lifting Cycle Time | s | 22 |

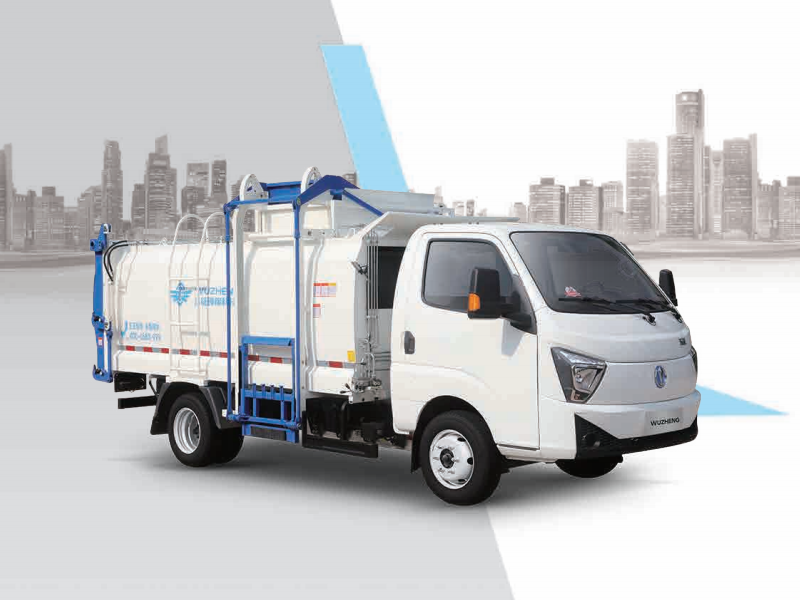

8m³ Pure Electric Self-Loading Garbage Truck
Green Plate & Class C License：The vehicle qualifies for green new energy license plates and can be operated with a Class C driver’s license, significantly lowering the entry barrier.
Lightweight Design：Side panels utilize weathering material and multi-bending technology, ensuring high rigidity and light weight to reduce operating costs.
Large Capacity：Features an 8m³ container with a higher compaction ratio, capable of holding 70 bins (240L) of domestic waste per trip.
Long Operational Range：Equipped with a 63.75kWh high-capacity battery, delivering an operational range of ≥100km to meet daily sanitation needs.
Eco-Friendly Design：Employs a unique rear door self-locking seal to effectively eliminate sewage leakage caused by cylinder bypass or hydraulic lock failure.
Technical Specifications
| Notice No. | Unit | WZK5041ZZZD66BEV |
| Container Capacity | m³ | 8 |
| Gross Vehicle Weight | kg | 4495 |
| Overall Dimensions | mm | 5910 × 2090 × 2540 |
| Battery Type/Brand/Capacity | kWh | LFP/CATL/63.75 |
| Wheelbase | mm | 3100 |
| Lifting Cycle Time | s | 12-14 |

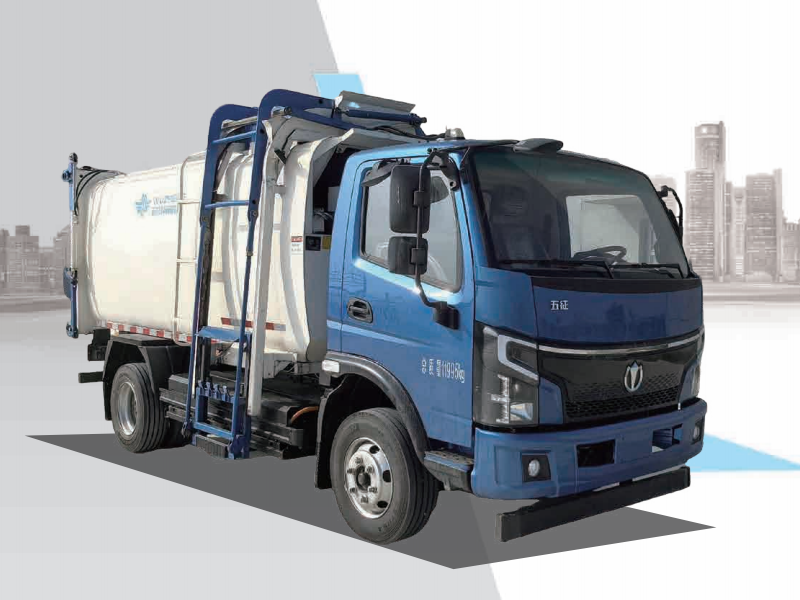

10m³ Pure Electric Automated Side Loader (ASL) Garbage Truck
High Battery Capacity：Equipped with a 132kWh high-capacity battery, ensuring ample and reliable power support.
Worry-Free Operating Range：The operational range reaches ≥200km, effortlessly meeting the demands of full-day, long-distance transport and sanitation tasks.
Large Loading Capacity：Features a built-in compaction head with lifting and dumping capabilities, achieving a large payload capacity of up to 6.5 tons.
Specialized Mechanism & Safe Reliability：Designed with a specialized anti-drop bin mechanism that is safe and reliable, reducing the waste bin damage rate by 30% compared to the industry average.
Excellent Sealing Performance：Utilizes a unique rear door self-locking seal structure to effectively prevent sewage leakage caused by cylinder bypass or hydraulic lock failure.
Technical Specifications
| Notice No. | Unit | WZK5120ZZZW63BEV |
| Container Capacity | m³ | 10 |
| Gross Vehicle Weight | kg | 11995 |
| Overall Dimensions | mm | 6290 × 2390 × 2855 |
| Battery Type/Brand/Capacity | kWh | LFP/FinDreams/131.98 |
| Operating Range | km | ≥ 200 |
| Wheelbase | mm | 3360 |
| Lifting Cycle Time | s | 12-14 |
