Professional Municipal
Tanker Solutions

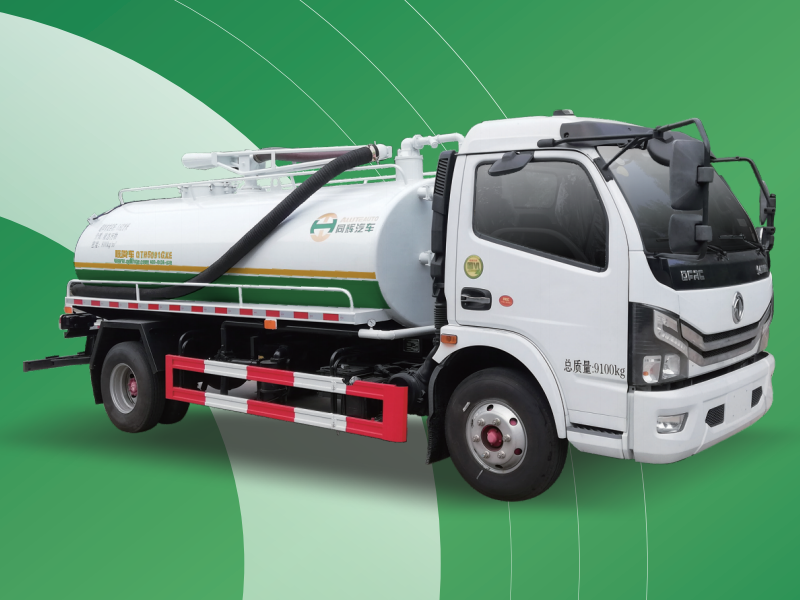

6m³ Diesel Cesspit Emptier
Special Chassis & Strong Power：Adopts a dedicated sanitation chassis with a powerful engine, offering stable mobility, comfortable driving, safety, and large payload capacity.
Large Capacity & High Transport Efficiency：The tank has an effective volume of 5.8 m³; the powerful suction pump ensures long range and high efficiency, significantly boosting workflow.
Reliable Quality & High Durability：Core components (pump, hydraulics, electrics) are from top brands; the tank plates undergo strict anti-corrosion treatment for a long service life.
Multi-Layer Protection & Reliable Operation：The suction system is equipped with an overflow protection device, effectively protecting the suction system and ensuring operational stability.
Excellent Design & Superior Performance：The vehicle features a compact structural design with component rigidity and strength meeting harsh conditions, balancing economy and practicality.
Technical Specifications
| Item | Unit | QTH5091GXE | Item | Unit | QTH5091GXE |
|
Overall Dimensions (L×W×H) |
mm | 6980x2300x2675 |
Cab Configuration |
(A/C) | |
|
Chassis Model |
EQ1095SJ8CD2 |
Max Speed |
km/h | 103 | |
|
Engine Model |
YCY24140-60 |
Compartment Volume |
m³ | 5.8 | |
|
Engine Power |
kw | 103 |
Wheelbase |
mm | 3800 |
| Max Gross Weight | kg | 9100 |
|

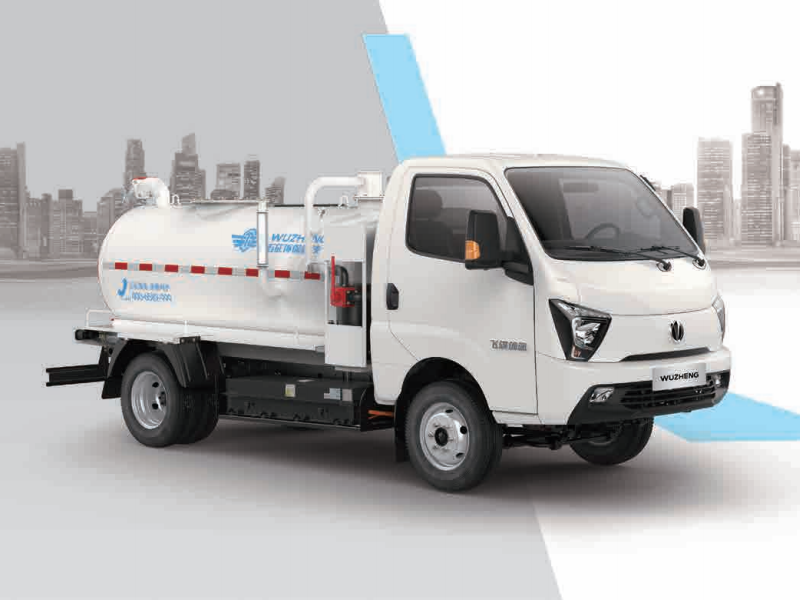

2m³ Pure Electric Cesspit Emptier
Compact Size & Large Capacity：Green plate with C-class license, compact vehicle size ideal for narrow alleys; tank volume is 2.3m³ for large single payload capacity.
High Efficiency & Long Range：Operating range is over 150km with powerful output, ensuring effortless full-load hill starts and strong climbing capability.
Reliable Quality：Tank made of premium carbon steel via automatic welding; round structure with surface electrophoresis primer plus baked coating, reliable and durable.
Convenient Operation：Valve-controlled top suction and bottom discharge, equipped with quick-change couplings and pipes for fast and convenient installation.
High-Efficiency Suction：Equipped with a 185m³/h high-flow vacuum pump, featuring vertical suction lift > 5m and horizontal suction distance > 20m for high efficiency.
Technical Specifications
| Notice Model | Unit | WZK5044GXED66BEV | Notice Model | Unit | WZK5044GXED66BEV |
|
Total Tank Capacity |
m³ | 2.3 |
Operating Range |
km | ≥ 150 |
|
Gross Weight |
kg | 4495 |
Fastest Charging Time |
h | ≤ 1 |
|
Overall Dimensions |
mm | 5460 × 1800 × 2030 |
Suction Time |
min | < 3 |
|
Wheelbase |
mm | 2860 |
Suction Depth |
m | 5 |
|
Battery Type/Brand/Capacity |
kWh |
LFP / CATL / 55.7 |
Horizontal Suction Distance |
m | 20 |

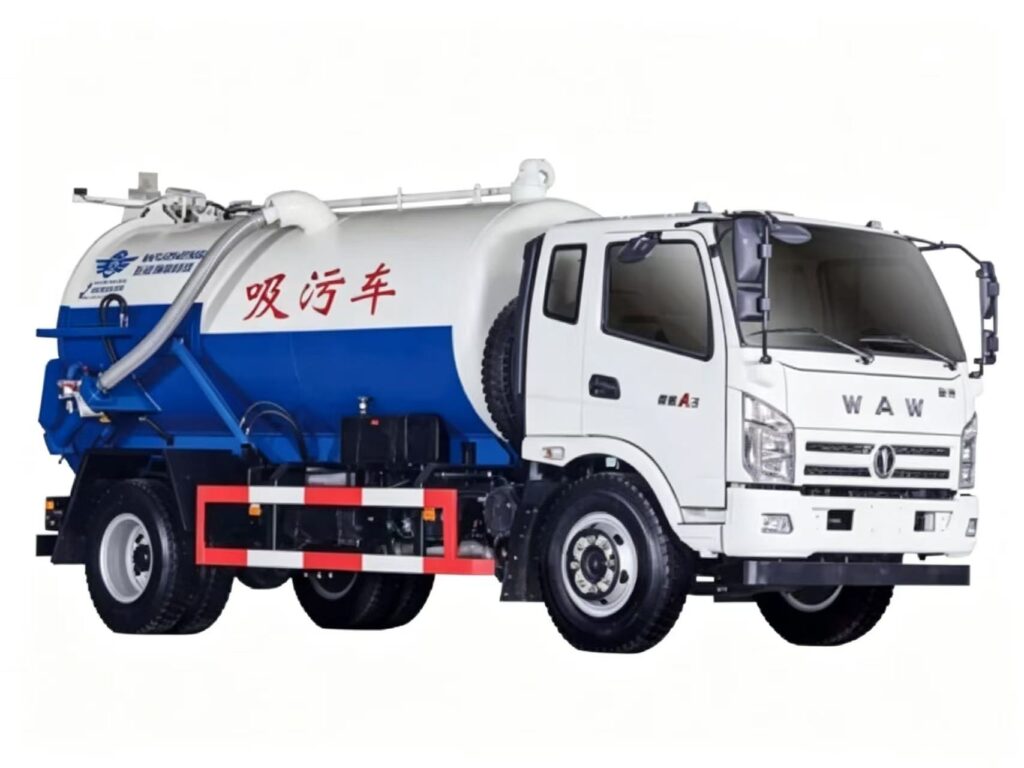

5m³ Vacuum Sewage Truck
High-Efficiency Pumping：PTO-driven vacuum pump works at idle for self-priming/discharging with low noise, low fuel, and long life.
Deep & Fast Suction：The 5m³ truck features high suction efficiency and oil/water separation, with a suction depth ≥4.
Overflow Prevention：Equipped with an anti-overflow device to prevent sewage backflow into the vacuum pump when full.
Self-Discharge & Remote Work：Features quick self-discharging and supports long-range suction with a horizontal distance up to 20m.
Easy & Reliable Operation：Easy and fast to operate, ensuring economical and reliable performance across multiple scenarios.
Technical Specifications
| Item | Parameter | Item | Parameter |
Notice Model | WZK5081GXWW17K6 | Displacement | 2289 ml |
Chassis Model | FD1081W17K6 | Gearbox | WLY 6-speed Transmission |
Gross Weight | 8275 kg | Drive Type | 4×2 (2WD) |
Rated Payload | Approx. 4000 kg | Vacuum Pump Type | PTO-driven Vacuum Sewage Suction Pump |
Tank Effective Volume | 5 m³ | Ultimate Vacuum Degree | -0.09 MPa |
Overall Dimensions (L × W × H) | Approx. 6300×2100×2600 mm | Vertical Suction Lift | ≥10 m |
Wheelbase | 3360 mm | Horizontal Suction Distance | Approx. 20 m |
Engine Model | Weichai WP2.3NQ130E61 (National VI) | Suction Time | 5-8 minutes / tank |
Max Horsepower | 130 hp | Tank Material | High-quality Carbon Steel (Thickness ≥5mm), Anti-corrosion and Anti-rust |
Max Power | 96 kW | Operational Functions | Self-priming, Self-discharging, Sewage Self-dumping |
| Safety Configuration | Anti-overflow Device (Prevents sewage backflow from damaging the vacuum pump) |
|
|
