Professional Water
Sprinkler Trucks

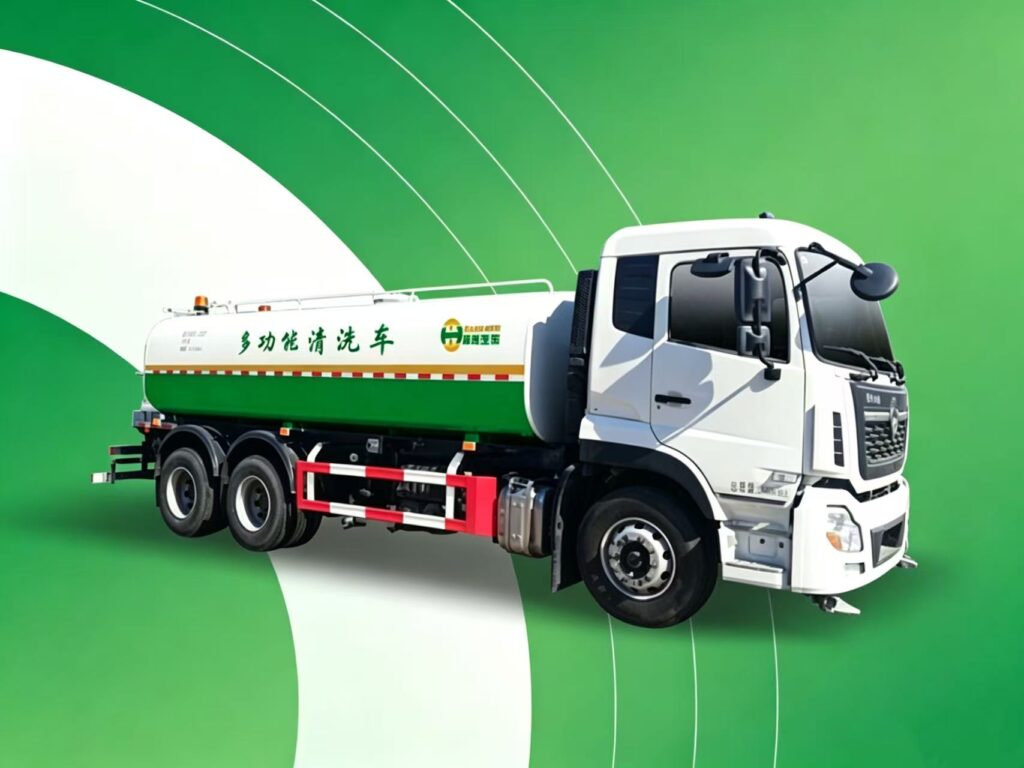

12m³/18m³/25m³ Diesel Water Tanker Truck
Complete Configuration & Full Functions：Features 10m fan shovel, 24m opposing column, and 32m cannon for flushing/firefighting; optional greening irrigation, pressure joints, and 12T/18T fog cannons.
Lightweight Chassis & Large Capacity：Lightweight chassis for higher payload and better fuel efficiency; large tank volume with anti-corrosion treatment for long-lasting durability.
Premium Suppliers & Excellent Quality：Premium selection of nozzles/cannons, Weilong pump, AirTAC solenoid valves, and Sono pneumatic valves ensure reliable, top-tier performance.
Wide Application & Diverse Scenario：Functions cover multiple complex scenarios, including deep washing of urban main roads, landscaping irrigation, and emergency firefighting.
Intelligent Control & Easy Operation：Optimized water system and valve control support one-touch switching of operation modes from the cabin, significantly reducing operational intensity.
Technical Specifications
| Item | Unit | QTH5162GSSA | QTH5183GSS | QTH5252GSS | Item | Unit | QTH5162GSSA | QTH5183GSS | QTH5252GSS |
Overall Dimensions (L×W×H) | mm | 7100x2430x2920 | 7940x2490x2845 | 9400x2520x3075 | Sprinkling Flow | L/min | 500-800 | 500-800 | 500-800 |
Chassis Model | EQ1165LJ9CDE | EQ1185LJ9CDE | DFH1250D4 | Water Cannon Range | m | 32 | 32 | 32 | |
Engine Model | YCS30165-60 | YCS04200-68 | DDi75E300-60 | Sprinkling Width | m | ≥16 | ≥16 | ≥16 | |
Engine Power | kw | 121 | 147 | 220 | Sprinkling Speed | km/h | 0-20 | 0-20 | 0-20 |
Cab Configuration | A/C | A/C | A/C | Water Tank Volume | m³ | 9.4 | 10.8 | 14 | |
Max Speed | km/h | 89 | 105 | 89 | Max Gross Weight | kg | 16200 | 18000 | 25000 |

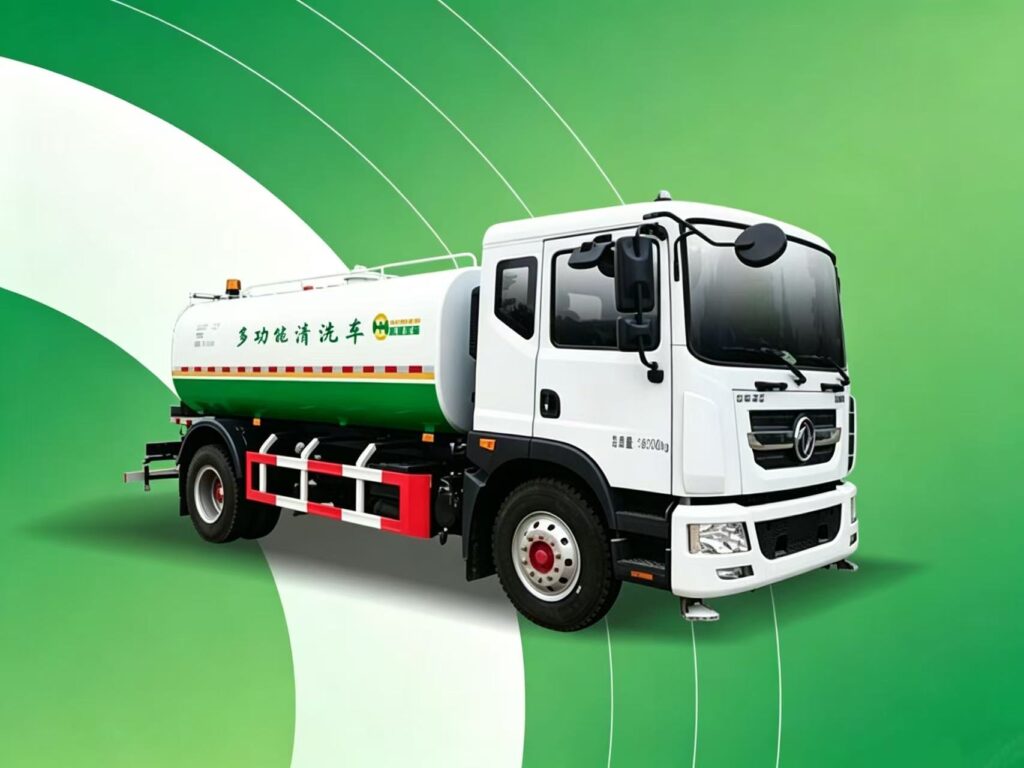

11m³ Diesel Water Tanker Truck
Durable, Stable & Safe：The tank is made of integrated steel plate with high corrosion resistance; built-in anti-wave baffles reinforce the tank and improve vehicle stability.
Powerful Flushing & High Efficiency：Water pump and pneumatic ball valves ensure high pressure; the opposing flushing system clears stones and peels to the roadside.
Intelligent Control & Easy Switching：Independently designed in-cab electric control system allows easy switching of spraying modes during driving for various work environment.
Wide Range & Large Coverage：Features a wide sprinkling width, fully meeting the cleaning demands of wider operational pavements in large and medium-sized cities.
Multi-functional Water Cannon：Long-range rear water cannon cleans high billboards and signs, and can adjust to mist mode for long-distance landscaping spraying.
Technical Specifications
| Total Mass of Water Truck (kg) | 18000 | Tank Volume (m3) | |
Rated Payload (kg) | 10670, 10605 | Overall Dimensions (mm) | 7940X2490X2845 |
Curb Weight (kg) | 7200 | Dimensions of Cargo Body (mm) | XX |
Rated Passenger Capacity | Total Mass of Quasi-trailer (kg) | ||
Cab Passenger Capacity | 2, 3 | Maximum Permissible Load on Saddle (kg) | |
Approach/Departure Angle (°) | 19/12 | Front/Rear Overhang (mm) | 1260/2180 |
Axle Load (kg) | 6500/11500 | Max Speed (km/h) | 105 |

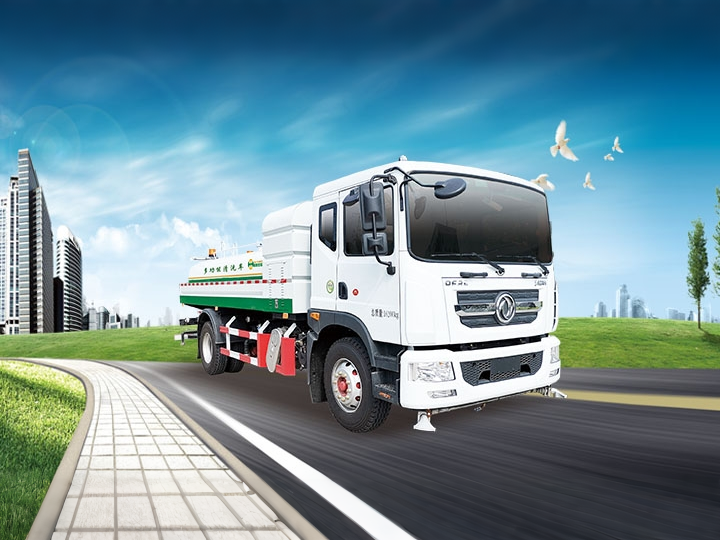

Diesel Water Tanker Truck
Premium Steel & Stability：The tank is made of steel plates for high corrosion resistance; internal anti-wave baffles reinforce the structure and enhance driving stability.
Powerful Flushing：High-quality water pumps and pneumatic ball valves ensure powerful high-pressure output for superior sprinkling and flushing performance.
Intelligent Control：Independent in-cab electrical control system enables easy, one-touch switching of various spraying modes on the move.
Extra-Wide Coverage：Boasts a large-span sprinkling width that perfectly meets the cleaning standards of wide pavements in large and medium-sized cities.
Versatile Cannon & Cooling：Long-range rear cannon cleans high signs or adjusts to mist mode; on hot roads, the rear sprayer cools the pavement and suppresses dust.
Technical Specifications
| Notice Model | WTF5040XLJS6 | Rated Passenger Capacity | 2-6 |
| Max Speed | 145,150,155 | Gross Weight | 4495 |
| Curb Weight | 33,503,900 | Fuel Type | Diesel |
| Emission Standard | GB17691-2018国VIGB17691-2018 National VI | Number of Axles | 2 |
| Wheelbase | 3760 | Axle Load | 1750/2745 |
| Number of Leaf Springs | -/3 | Number of Tires | 6 |
| Tyre Specification | 195/75R16LT | Approach/Departure Angle | 19/19 |
| Front/Rear Overhang | 1020/1160 | Front Track | 1740 |
| Rear Track | 1654 | Overall Height | 2535,2755,2620,2830,2640,2850,2665 |
| Overall Length | 5940 | erall Width | 21,102,130 |

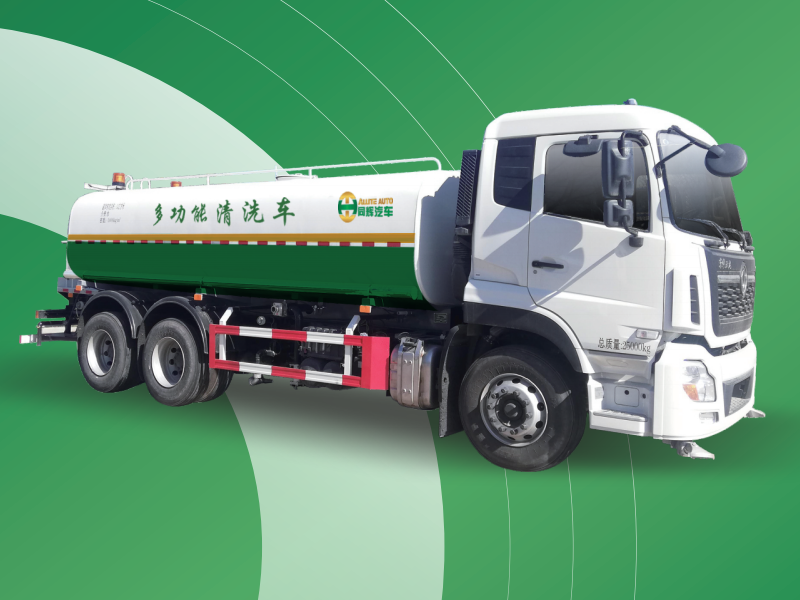

12–15 m³ QINGTE Water Tanker Truck
Large tank capacity and long operational range make it perfectly suited for continuous work on urban main roads.
Multiple nozzles and a high-pressure water monitor allow for versatile operations, including sprinkling, greening irrigation, and emergency firefighting.
Self-priming water pump enables flexible water refilling directly from natural, outdoor sources like rivers or ponds.Intelligent low water level alarm protects the system by preventing dry running, ensuring safe and reliable operation.
Anti-corrosion interior lining effectively protects the tank from rust and wear, significantly extending its operational lifespan.
Technical Specifications
| Item Category | Detailed Parameters & Content |
| Dimensions | Approx. 9800×2500×3200 mm |
| Water Tank Volume | 12–15 m³ |
| Front Flushing / Rear Sprinkling / Side Spraying / Water Monitor |
| Flow Rate | ≥60 m³/h |
| Range | ≥28 m |
| Chassis | 6×4 SINOTRUK / DONGFENG |
